THE PRAKTINA SYSTEM



Stereo Equipment

The Carl Zeiss Jena attachments allow you to take stereo pictures on the double 18x24 format. Using the special viewfinder you have the stereo view of the picture you are taking.
Two attachments are available. The first one has a base of 12mm and is suitable for focusing up to 2m and the second one has a base of 65mm and is suitable for focusing from 2m to infinity. They are screwed onto standard lenses with 49mm thread filter i.e. Tessar, Flexon and Pancolar.
The use of these attachments is not recomended on 58mm Biotar and the use on 50mm preset Tessar requires an adapter.

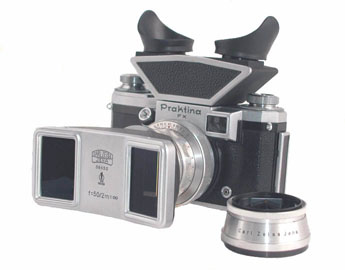

Stereo Attachments
Two attachments are available from Carl Zeiss Jena. The first one has a base of 12mm and is suitable for focusing up to 2m and the second one has a base of 65mm and is suitable for focusing from 2 m.

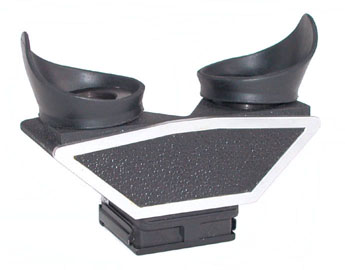

Stereo Viewfinder
This finder can be used only in conjunction with Carl Zeiss Jena stereo attachments.

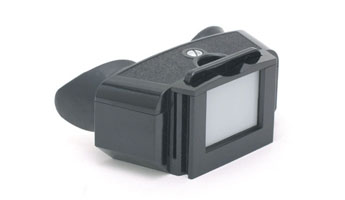

Stereo Viewer
This viewer is suitable to view the stereo slides mounted on special frame.
