THE PRAKTINA SYSTEM



Viewfinders

Eye-level Finders, Waist-level Finders, Metering Prism Finder, 6x High Magnification Waist-level Finder and Focusing Screens are suitable for all Praktina models.

Eye-level Finder

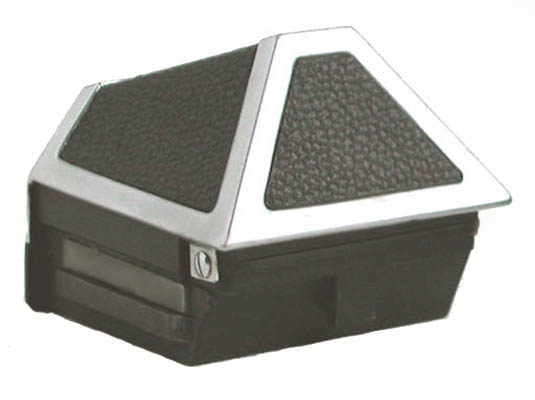

Type 1

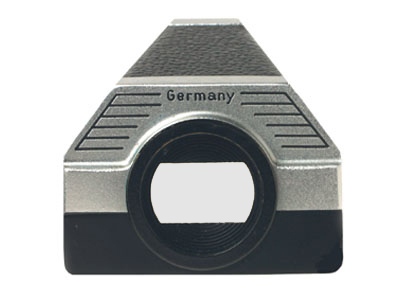

The type 1 eye-level finder has the front covered with leather. Version A show the word Germany on the back. In version B this writing is missing.

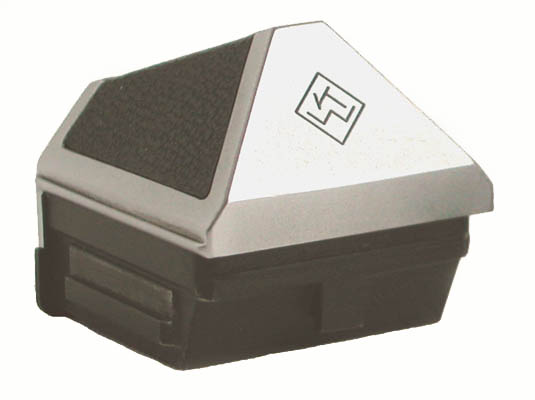

Type 2

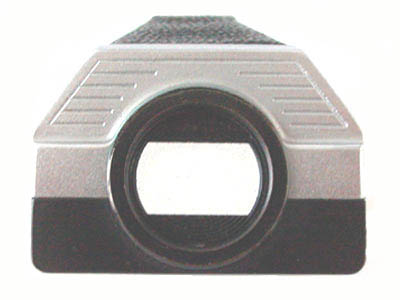

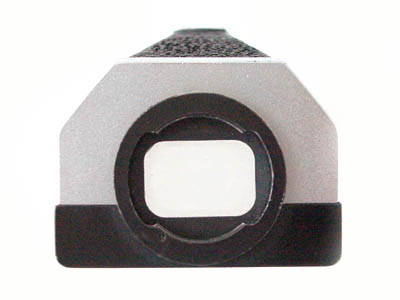

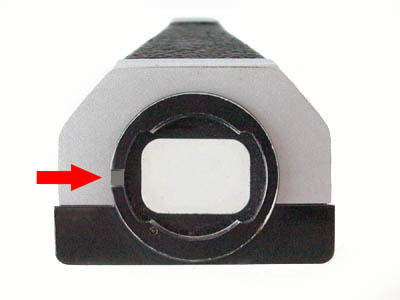

The type 2 eye-level finder has the logo KW on the front. Version A has the eyepiece collar with thread and bayonet mount. Version B has an additional notch to fix some accessories.


Type 1


Version A


Version B



Type 2

Version A

Version B

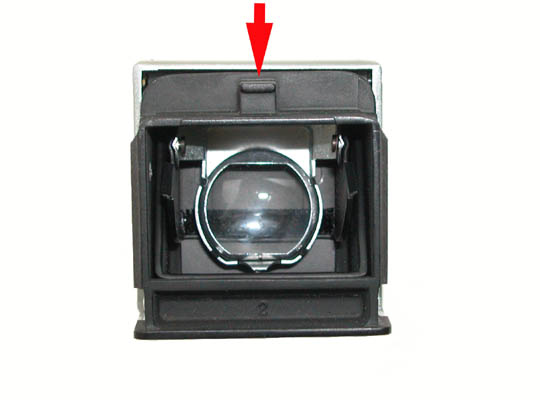

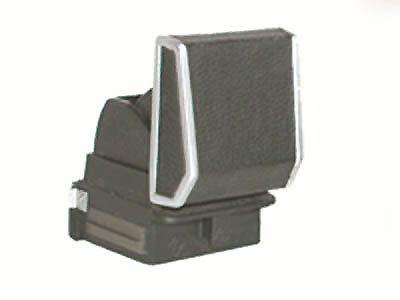

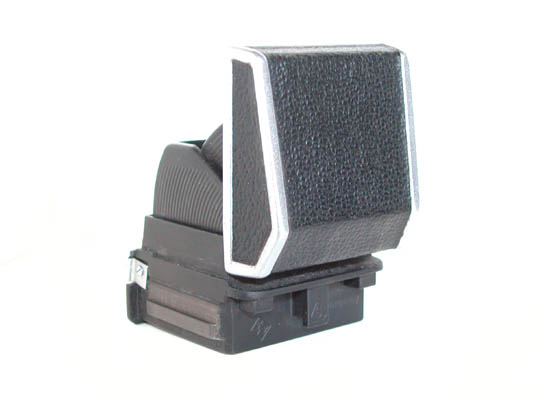

Waist-level Finder
Type 1

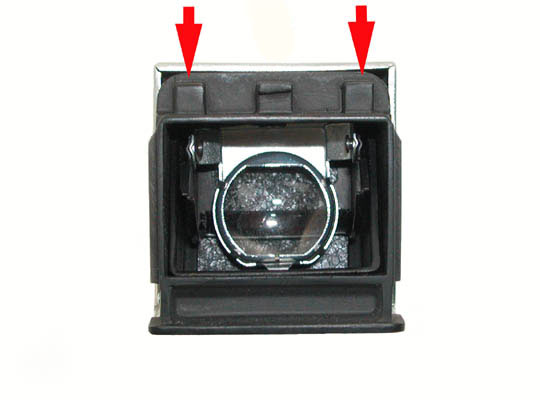

The type 1 waist-level finder has two projections on the front and the casting at the base is solid
Type 2

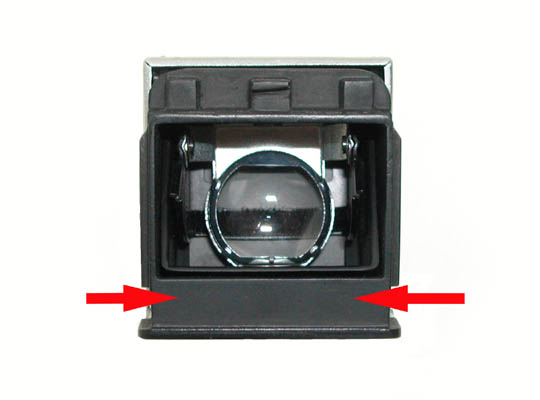

The type 2 waist-level finder has two projections on the front and the casting at the base shows a cavity
Type 3
The type 3 waist-level finder has no projections on the front and the casting at the base shows a cavity



Type 1

Type 2

Type 3

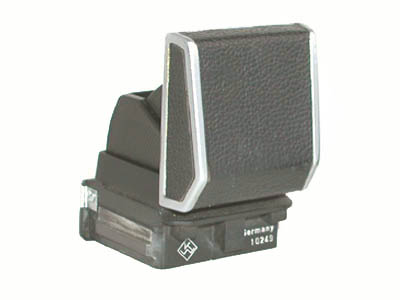

Metering Prism Finder
The metering prism finder has exposure indexes from 1 to 15, shutter speeds scale from 1/1000 sec to 60 sec, aperture scale from f/2 to f/22 and film speeds indexes ASA 6 to 400 / 9 to 27 DIN. There are two types with different sensitivity.

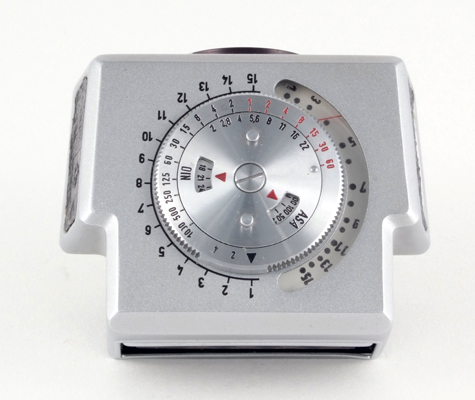

Type 1
Identifier: Set ASA to 100 and the index mark to 1; at 1 sec. the f/number must be 2.8

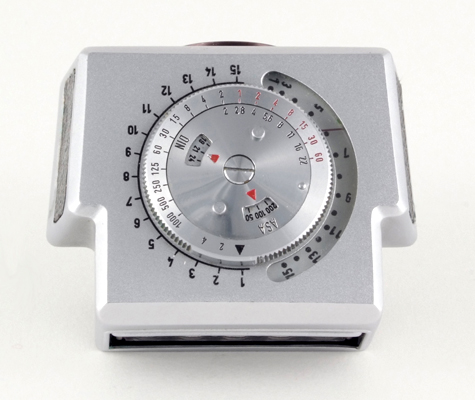

Type 2
Identifier: Set ASA to 100 and the index mark to 1; at 1 sec. the f/number must be 2
Remark
This finder cannot be mounted on the Praktina models IIA-A version 4, IIA-DA version 2 and Porst reflex.


Front view with opened cover


Front view with closed cover



Type 1

Type 2


6x High Magnification Waist-level Finder
This finder for macro photography provides a full frame image with 6x magnifying power.

Focusing Screens
The focusing screens are available in six variants:
• matte
• matte with split-image rangefinder
• matte with vertical and horizontal lines
• matte with crosshair in clear glass centre circle
• matte with cross centre lines with millimetre scales
• clear glass with cross centre vertical and horizontal lines

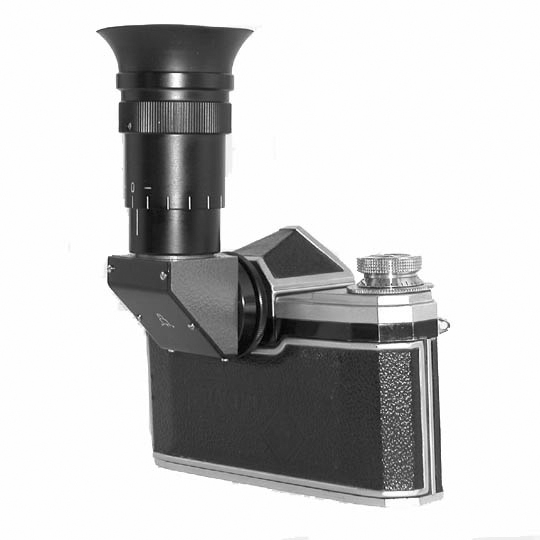

Right-angle Viewing Attachment
The right-angle viewing attachment fits the eye-level finder type 2 and the metering prism finder.
