THE PRAKTINA SYSTEM



Film Advance Drive Units

A winding coupler is located at the bottom of the camera body for connection with the spring winder, the electric motor drive and the rapid winding lever.

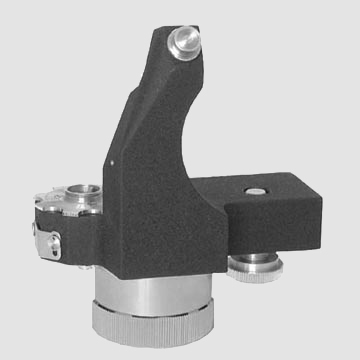

Spring Winder
The spring winder allows to take up to ten pictures in rapid succession. Two versions are available with different camera attachment screw size.
Type 1
The type 1 spring winder has a 3/8 camera attachment screw and can be mounted only on cameras with 3/8 tripod thread.
Type 2
The type 2 spring winder has a 1/4 camera attachment screw and can be mounted on cameras with 1/4 and 3/8 tripod thread via an adapter.

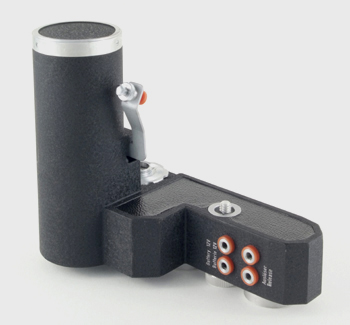

Electric Motor Drive with Magnetic Trigger
The electric motor drive allows to take never-ending exposures in quick succession. It requires a 12v power supply and can be operated up to a distance of 25 meters via a cable connection. Two versions are available with different camera attachment screw size.
Type 1
The type 1 electric motor drive has a 3/8 camera attachment screw and can be mounted only on cameras with 3/8 tripod thread.
Type 2
The type 2 electric motor drive has a 1/4 camera attachment screw and can be mounted on cameras with 1/4 or 3/8 tripod thread via an adapter.

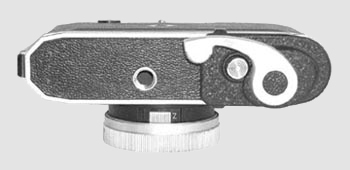

Rapid Winding Lever
The rapid winding lever can be mounted on every Praktina cameras.
