THE PRAKTINA SYSTEM



Praktina FX
The Fifth Generation

Important changes and improvements have been made in the fifth generation of Praktina FX.
These are the changes in the version 1:
• Body casting and top cover
• Internal cover of shutter focal plane
• Film Take-up Spool
• Screen Lever Lock
• Mirror Support
• Camera back
and these in the version 2:
• Optical viewfinder size and edge
• Film reminder dial with ASA and DIN film speed settings
• Eyelevel finder, brighter and with different look.

The Praktina FX model SA2 and SA3 exported to some western markets have sometimes special markings. The body, the viewfinders and the camera back are painted or engraved with inscriptions as "GERMANY EAST" or "GERMANY U.S.S.R." or "GERMANY U.S.S.R. OCCUPIED". The logo "KW Germany" on the top of the camera is covered by a label with only the "KW" logo, and the "Germany" inscription on the viewfinders and the lenses is milled.

See the specifications of this model in the Praktina specifications page.

Praktina FX model SA3

Manufacturer NameVEB Kamera-Werke Niedersedlitz
Factory DesignationPraktina FX
Model DesignationSA3
Years1956-1958
Number producedapprox. 27,000
Standard Lenssemi-automatic Tessar 2.8/50mm or Biotar 2/58mm
Variations • Optical viewfinder  • Film reminder dial  • Tripod thread  • Film wind and rewind knobs

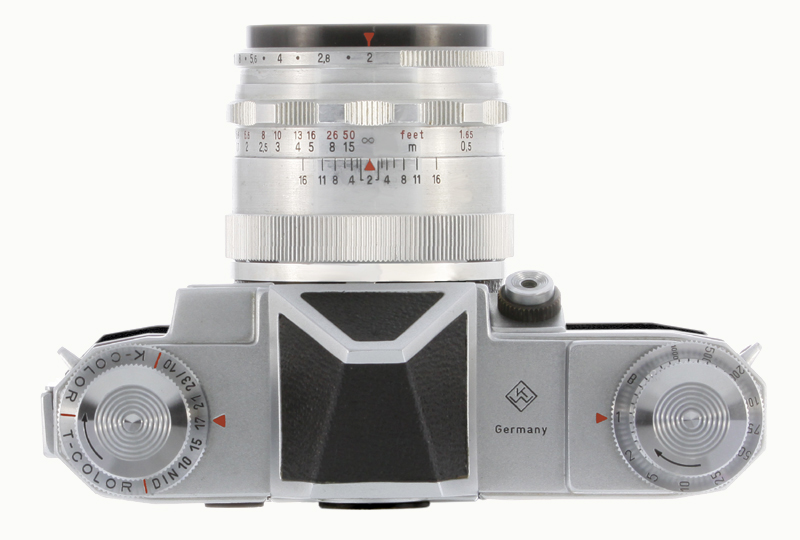

Praktina FX model SA3 version 1 No. 60742 with semi-automatic Jena B 2/58 and eye-level finder

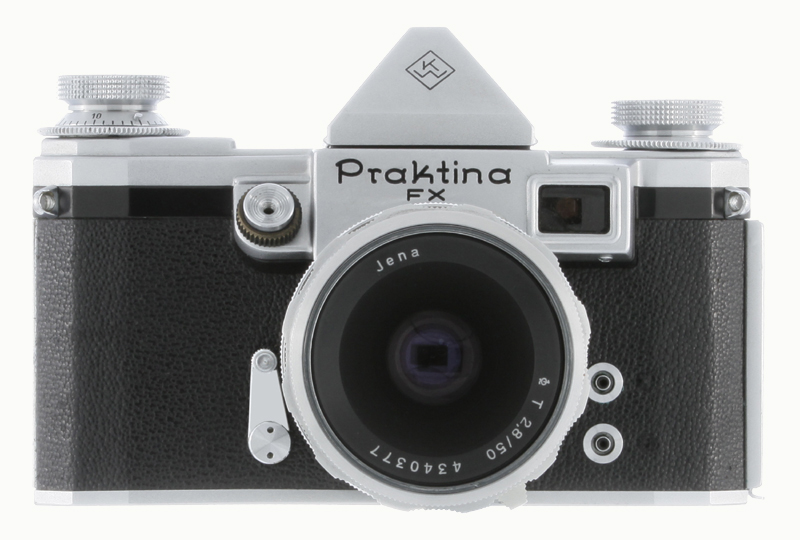

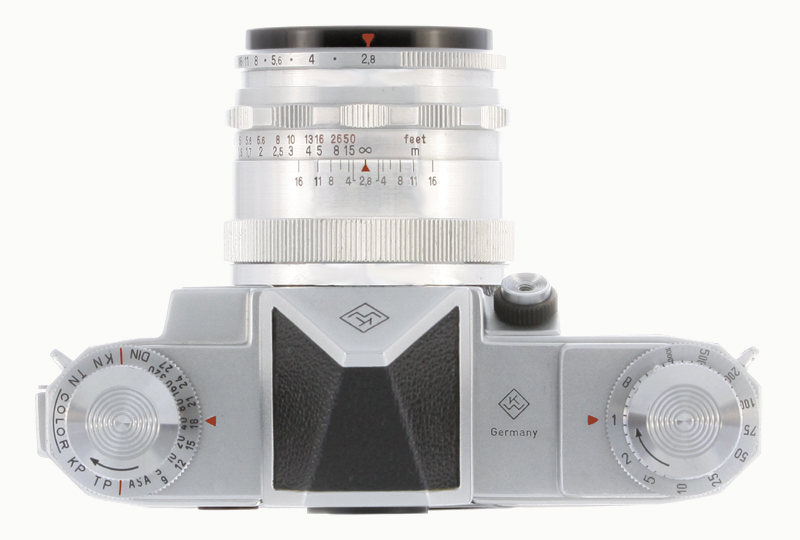

Praktina FX model SA3 version 2 No. 73124 with semi-automatic Jena T 2.8/50 and eye-level finder

Model and Version Identifiers

Model SA3




• "Praktina FX" engraved on the front of the camera
• Diaphragm's control for semi-automatic lenses   (fig. 1)
• Two coaxial PC connectors for X and F sync   (fig. 2)
• Screen lock levers length 22 mm   (fig. 3)
• Full-size camera back hooking   (fig. 4)
Version 1

• Optical viewfinder of the second type   (fig. 5)
• Film reminder dial with film speed DIN 10-23 marking   (fig. 6)
Version 2

• Optical viewfinder of the third type   (fig. 7)
• Film reminder dial with film speed both ASA and DIN markings   (fig. 8)



fig. 1

fig. 2

fig. 3

fig. 4





fig. 5

fig. 6

fig. 7

fig. 8



Export Versions

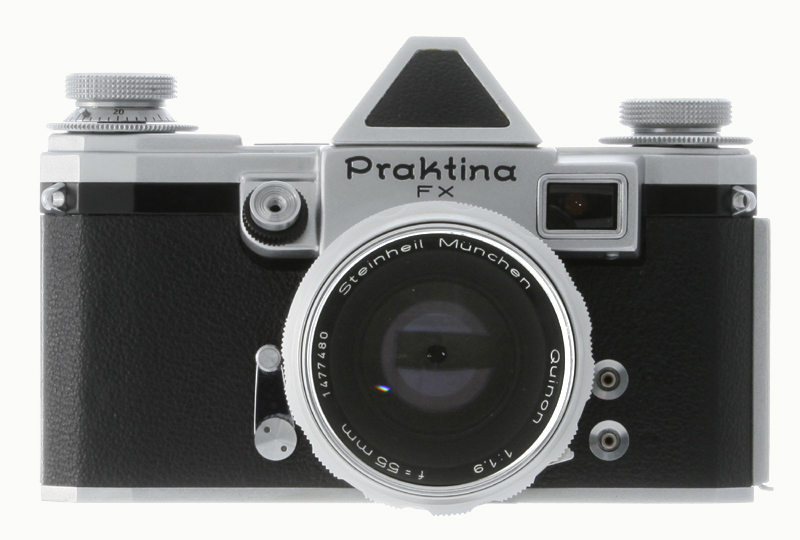

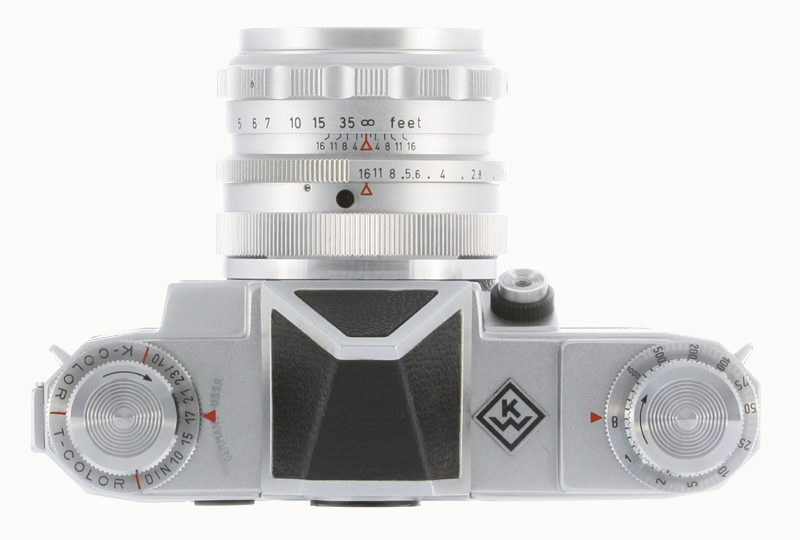

Praktina FX model SA3 version 1 No. 56912 with Steinheil Quinon 1.9/55


Price list
♦   O. Hedler, West Germany distributor, Price list July 1957
Body, waist-level finder, matte focusing screen, semi-automatic T 2.8/50 mm
Body, waist-level finder, matte focusing screen, semi-automatic B 2/58 mm
Body, eye-level finder, matte focusing screen, semi-automatic T 2.8/50 mm
Body, eye-level finder, matte focusing screen, semi-automatic B 2/58 mm
Matte focusing screen with split-image rangefinder




DM 599
DM 729
DM 669
DM 799
DM 36
